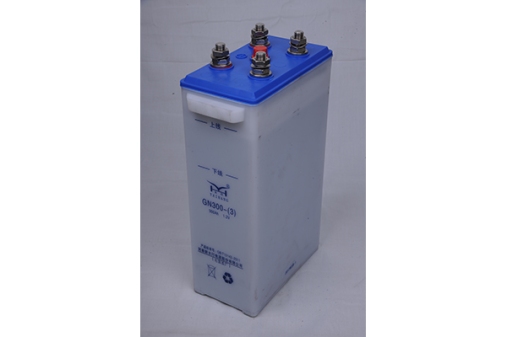

Cadmium-nickel Battery for Civil Use GN300-(3)Back
Gn300 - (3) battery is specially designed for the particularity of railway locomotives and vehicles, Its performance can not only meet the requirements of locomotive internal combustion engine, but also meet the use of electric locomotive, air-condit
1、It has excellent electrical performance and can be used in the environment of - 40 ~ + 40 ℃.
2、Long service life， firm structure and resistance of overcharge and over discharge.
3、Small self discharge, high reliability and convenient maintenance.
Product parameter
Nominal Voltage (V) | 1.2V | |
Nominal Capacity（0.2ItA) | 300Ah | |
Battery Dimension | L | 277 |
W | 139 | |
H | 410 | |
Total Height | 450 | |
Weight (Kg) | 21.5 | |
Terminal | M16 | |
Capacity （25℃） | 10H | 110% |
5H | 100% | |
3H | 60% | |
|
| |
Internal Resistance（25℃） | Full Charge | 4mΩ |
Discharge capacity of battery at different temperatures（25℃） | 40℃ | 95% |
25℃ | 100% | |
0℃ | 87% | |
-18℃ | 50% | |
Residual capacity after self discharge （25℃） | 28天 | 80% |
Cooperative partner
Application fields
It is used for standby power supply and DC operation power supply of electrical appliances, lighting and uninterrupted devices, as well as starting power supply of oil engine and DC motor, DC power supply of transportation tools, etc
