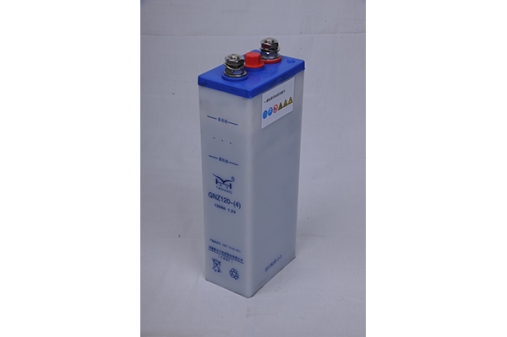

Nickel-cadmium Battery GNZ120-(4)Back
GNZ120-(4) battery applies new technical measures and new structure on the basis of the original medium rate series battery, maintains the characteristics of the original bag battery, and meets the requirements of less maintenance and long service li
1. It has the excellent performance and can be used in the environment of - 40 ~ + 40 ℃
2. Long service life, strong structure, resistance to overcharge and over discharge.
3. Low self-discharge, high reliability, easy maintenance.
Product parameter
Nominal voltage(V) | 1.2V | |
Nominal capacity（0.2ItA) | 120Ah | |
Battery size | long | 141 |
width | 90 | |
height | 332 | |
Total height | 363 | |
quality Kg（Total height） | 7.3 | |
terminal | M16 | |
capacity （25℃） | 10 hourly rate | 110% |
5 hourly rate | 100% | |
3 hourly rate | 80% | |
1 hourly rate | 75% | |
internal resistance（25℃） | Full of electricity | 4mΩ |
Discharge capacity of batteries at different temperatures（25℃） | 40℃ | 95% |
25℃ | 100% | |
0℃ | 87% | |
-18℃ | 60% | |
surplus capacity after self discharge （25℃） | 28days | 80% |
Cooperative partner
Application fields
Applied in reserve power supply for model 25G/25T coach and DC power supply for means of transportation, and it also can be matched with sun-generated electric power.
