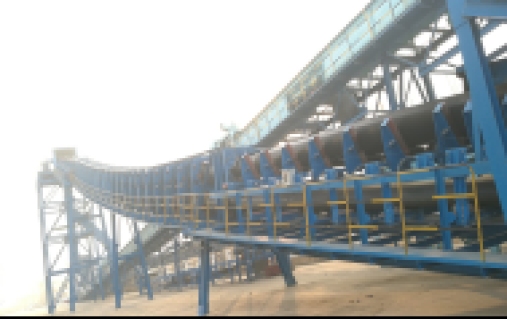

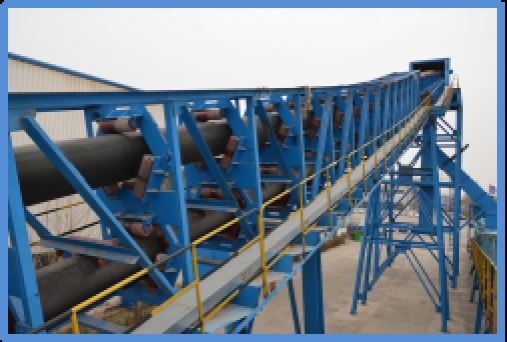

Tubular Belt ConveyorBack
Tubular belt conveyor is a kind of special belt conveyor developed on the basis of trough belt conveyor, several (usually six) idlers are used to form a regular polygon idler group to force the conveyor belt to form a circular tube, airtight and cont
In addition to the characteristics of large conveying capacity, simple structure, convenient use and strong adaptability of general belt conveyor, tubular belt conveyor has the following advantages:
1、Wide range of materials are transported
2、Enclosed conveying of materials can reduce the pollution to the environment;
3、Materials are not easy to adhere to the conveyor belt, and the conveyor belt is easy to clean;
4、It can realize space turning operation with small radius of curvature;
5、It can realize large inclination conveying;
6、The reciprocating operation of the conveyor belt can be used to realize two-way conveying of materials
7、Space saving.
Product parameter
No. | Pipe diameter （mm） | Tape width（mm） | 75% filled cross-sectional area (m2) | Belt speed (m/s) | Maximum conveying capacity (t/h) | Maximum material granule | Minimum length (m) |
1 | 100 | 430 | 0.006 | 0.8~2 | 43 | 20~30 | 15 |
2 | 150 | 600 | 0.013 | 0.8~2 | 95 | 30~50 | 18 |
3 | 200 | 800 | 0.023 | 0.8~2.5 | 212 | 50~70 | 20 |
4 | 250 | 1000 | 0.037 | 0.8~3.15 | 417 | 70~90 | 23 |
5 | 300 | 1200 | 0.053 | 0.8~3.15 | 600 | 90~100 | 25 |
6 | 350 | 1400 | 0.072 | 1~3.15 | 818 | 100~120 | 30 |
7 | 400 | 1600 | 0.094 | 1.25~5 | 1695 | 120~150 | 35 |
8 | 500 | 2000 | 0.147 | 1.25~5 | 2650 | 150~200 | 40 |
9 | 600 | 2250 | 0.212 | 1.6~5 | 3815 | 200~250 | 50 |
10 | 700 | 2550 | 0.288 | 1.6~5 | 5193 | 250~300 | 60 |
11 | 850 | 3100 | 0.425 | 1.6~5 | 7656 | 300~400 | 70 |
(mm)Cooperative partner
Application fields
Tubular belt conveyors can be widely used in electric power, building materials, chemicals, metallurgy, mining, coal, ports, grain and so on.
